Model-EXCEL-44- GMP MODEL ALU –ALU & ALU-PVC FORMING
Application & Process :
PRISM has wide range of high precision automatic Blister Packing Machines. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of ALU -ALU & ALU- PVC base web.
Salient Features :
- Packing Speed : 40 Cycle/min for Thermo-Forming, 35 Cycle/min for Cold-Forming
- Feeding System : Auto feeding system by PLC Logic with pneumatic Combination.
- Servo Drive Indexing : Servo web indexing by rigid PLC Logic.
- Operator Interface : User friendly MMI touch screen (Man machine interface)
- Pneumatic Operations : Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal Availability of bought outs.
Packaging Materials :
- Base Material : ALU-ALU/ PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP
- Lading Material : Aluminum with Heat Sealable Lacquer Coating.
Utilities Requirement :
- Compressed Air : 11 CFM dry air at a Pressure of 6 Kg/Cm2
- Water Cooler : 120 Liters / Hr. Inlet pressure = 2.5 bar (Max) Water outlet Temp. = 15 ± 2° C
- Connected Load : 6.5 KW
- Electrical Power : 220/380/415 V ± 10%, 3 Phase, AC, 50/60 Hz ± 2 Hz (4 Wire).
- Earthing Cable : Copper, 2.5 mm2 (Minimum)
|

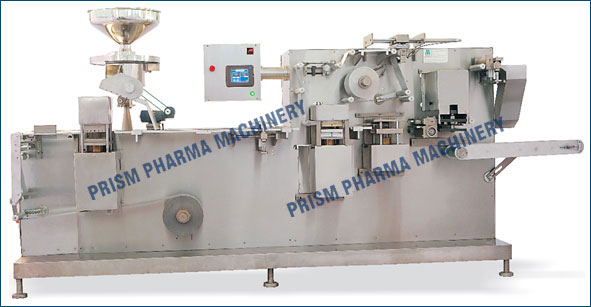

Blister Packing Machine
